- specification: This Ebike battery is 24V/36V/48V 8Ah/10Ah/12Ah/15Ah/20Ah, compatible with 200-1000W motor. It comes with 2A charger.
- Waterproof battery: The outer layer of the battery pack is made of waterproof PVC material, insulation, wear resistance. The inner layer has the advantages of low melting point, waterproof seal and high adhesion. For the battery life, please put it in a bag or a case when using.
- High quality battery: keeps a charge and keeps its shelf life longer than batteries that tend to die out quickly. High quality Battery Cell to ensure the long life expectancy.
- Long life time: Every battery have pass the appearance and function test before shipment. The Ebike battery charge cycle exceeds 1000 times.
- Battery is a dangerous product: Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation.

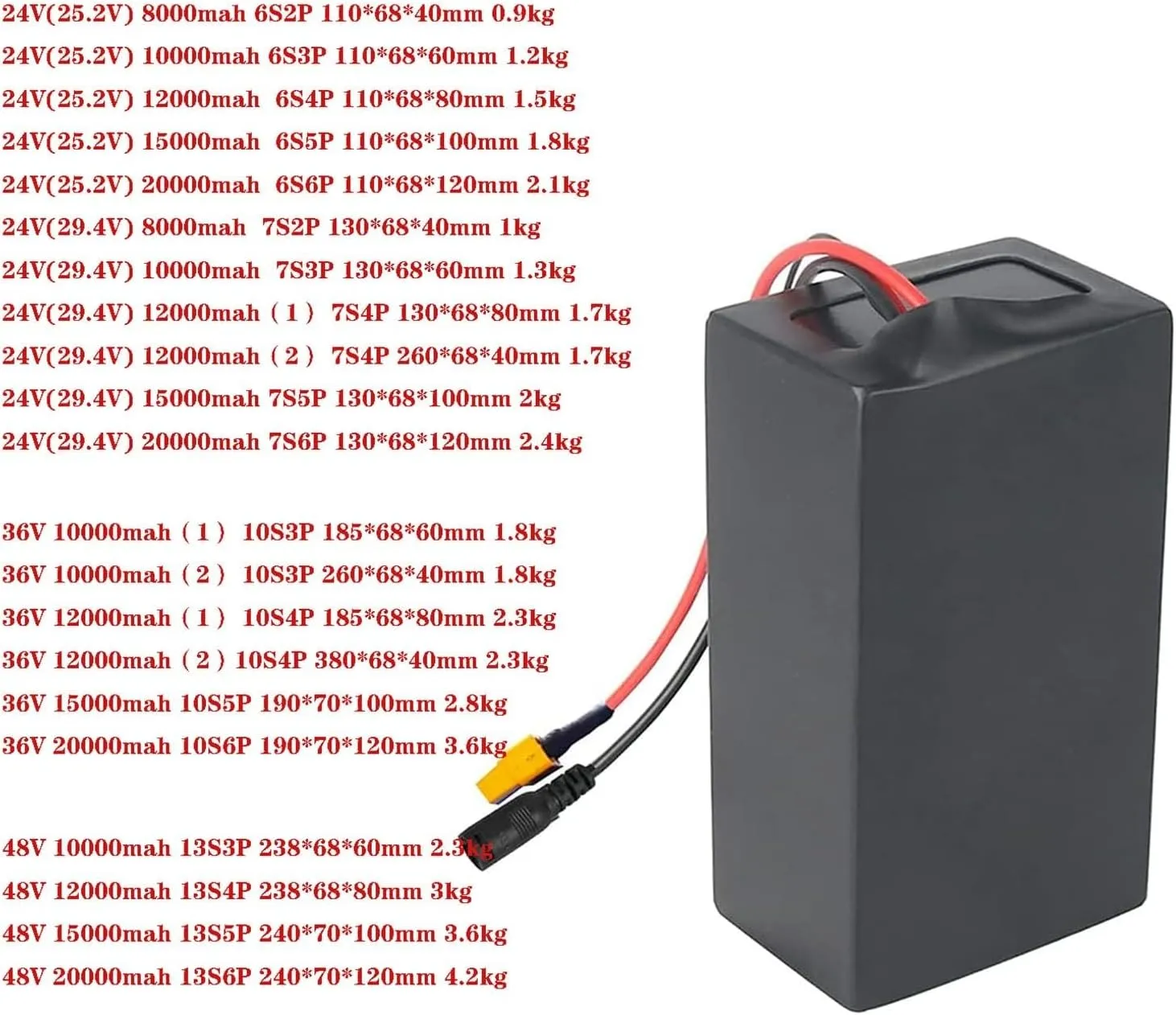

Parameters
Dimensions:
24V(25.2V) 8000mah 6S2P 110*68*40mm 0.9kg
24V(25.2V) 10000mah 6S3P 110*68*60mm 1.2kg
24V(25.2V) 12000mah 6S4P 110*68*80mm 1.5kg
24V(25.2V) 15000mah 6S5P 110*68*100mm 1.8kg
24V(25.2V) 20000mah 6S6P 110*68*120mm 2.1kg
24V(29.4V) 8000mah 7S2P 130*68*40mm 1kg
24V(29.4V) 10000mah 7S3P 130*68*60mm 1.3kg
24V(29.4V) 12000mah（1） 7S4P 130*68*80mm 1.7kg
24V(29.4V) 12000mah（2） 7S4P 260*68*40mm 1.7kg
24V(29.4V) 15000mah 7S5P 130*68*100mm 2kg
24V(29.4V) 20000mah 7S6P 130*68*120mm 2.4kg
36V 10000mah（1） 10S3P 185*68*60mm 1.8kg
36V 10000mah（2） 10S3P 260*68*40mm 1.8kg
36V 12000mah（1） 10S4P 185*68*80mm 2.3kg
36V 12000mah（2）10S4P 380*68*40mm 2.3kg
36V 15000mah 10S5P 190*70*100mm 2.8kg
36V 20000mah 10S6P 190*70*120mm 3.6kg
48V 10000mah 13S3P 238*68*60mm 2.3kg
48V 12000mah 13S4P 238*68*80mm 3kg
48V 15000mah 13S5P 240*70*100mm 3.6kg
48V 20000mah 13S6P 240*70*120mm 4.2kg
Outside packaging: PVC
Inside with protective circuit: overcharge, over discharge, over current, short circuit protection!
Shipping list:
1. 1 pcs battery

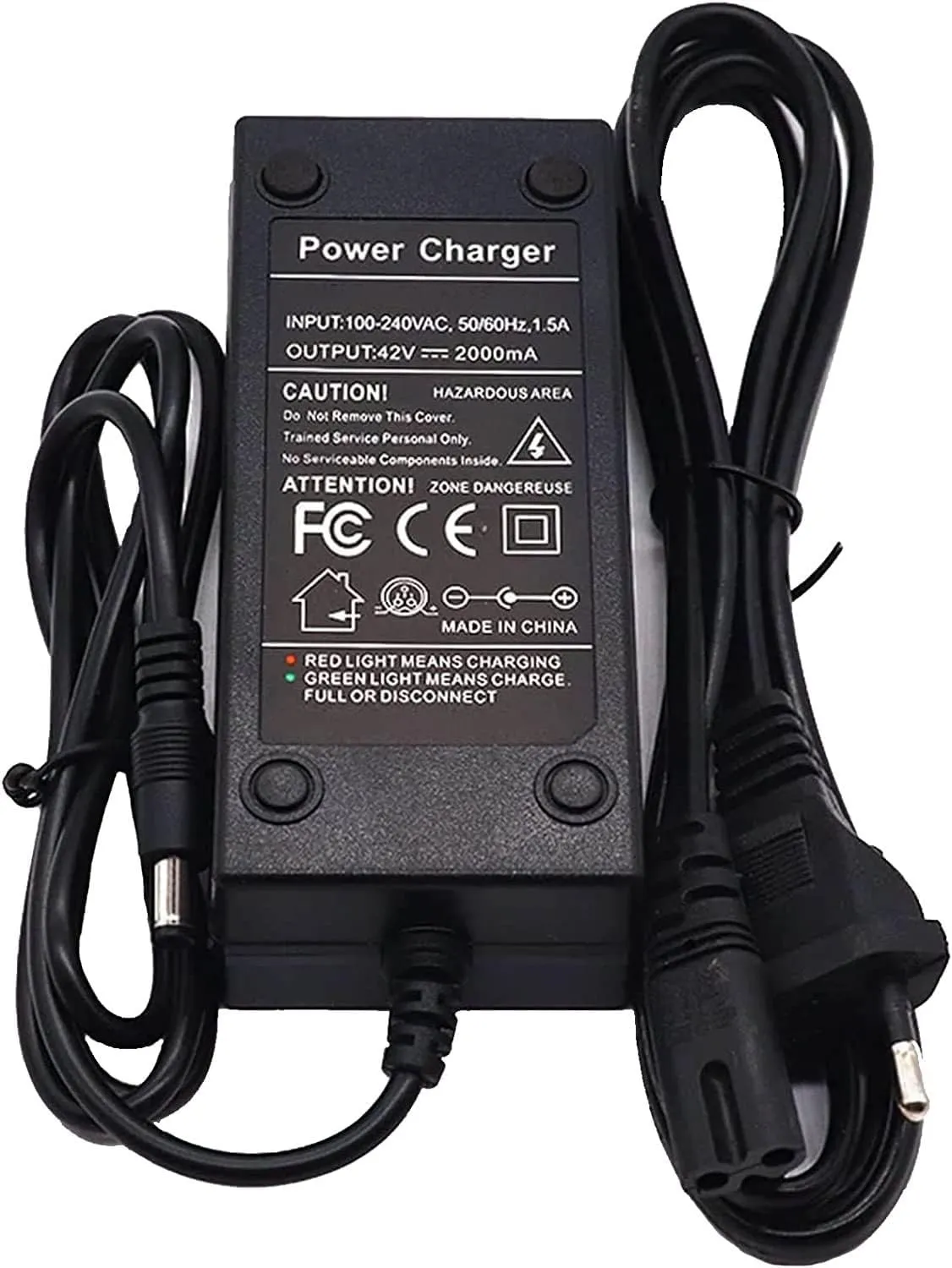

2. 1 pcs charger
Notice:
1. Storage: please store the battery in a cool and dry place (preferably between 0 and 30°).

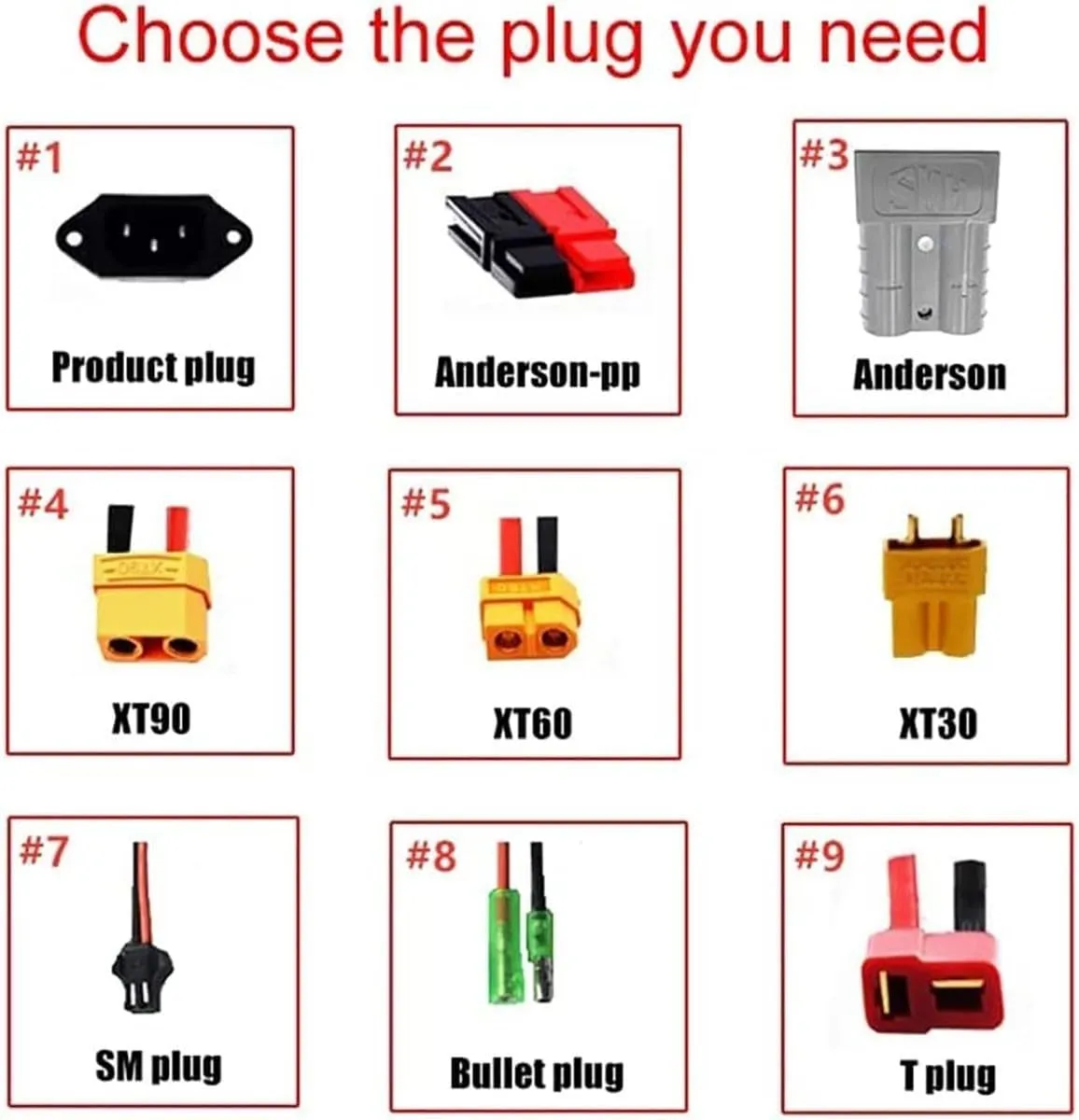

2. Please confirm the plug you need before placing an order.
3. Since the size is manually measured, there may be a slight deviation, please understand.
