- 【Parameters】This ebike battery pack is 36V 10/12/15/20AH, suitable for 1000W 750W 500W 350W motor. Max constant discharge current: 20A. Charger: 42V 3A . Discharge: XT60/T.
- 【Waterproof Material】The outer layer of the battery is made of waterproof PVC material, insulation, wear resistance. The inner layer has the advantages of low melting point, waterproof seal and high adhesion.
- 【≥80% capacity after 800 cycles】We have implemented strict quality management policy: each lithium battery has passed the appearance and function test before shipment. Ebike battery charging cycle exceeds 800 times, life expectancy up to 5 years.
- 【NOTE】Do not attach the battery pack directly to the bike, it is easy to collide or extrude and shorten the battery life. We recommend putting it in a bag, suitcase.
- 【APPLICATIONS】Electric bicycles, electric scooters, electric skateboards, electric wheelchairs, model airplanes, power tools, DIY batteries, golf carts, tourist vehicles, electric motorcycles, electric wheelchairs, etc.
product information
Battery Type: Electric Bicycle Battery
Default voltage: 36V
Rated capacity: 10Ah-20AH
Charging voltage: 42V
Charging current: 2A
Storage temperature: -15℃-45℃
Charging: 0°C to 45°C
Discharge: -20℃～60℃
Size:
36V 10000mah（1） 10S3P 185*68*60mm 1.8kg
36V 10000mah（2） 10S3P 260*68*40mm 1.8kg
36V 12000mah（1） 10S4P 185*68*80mm 2.3kg
36V 12000mah（2）10S4P 380*68*40mm 2.3kg
36V 15000mah 10S5P 190*70*100mm 2.8kg
36V 20000mah 10S6P 190*70*120mm 3.6kg
Scope of application: electric vehicles, driving, folding electric vehicles

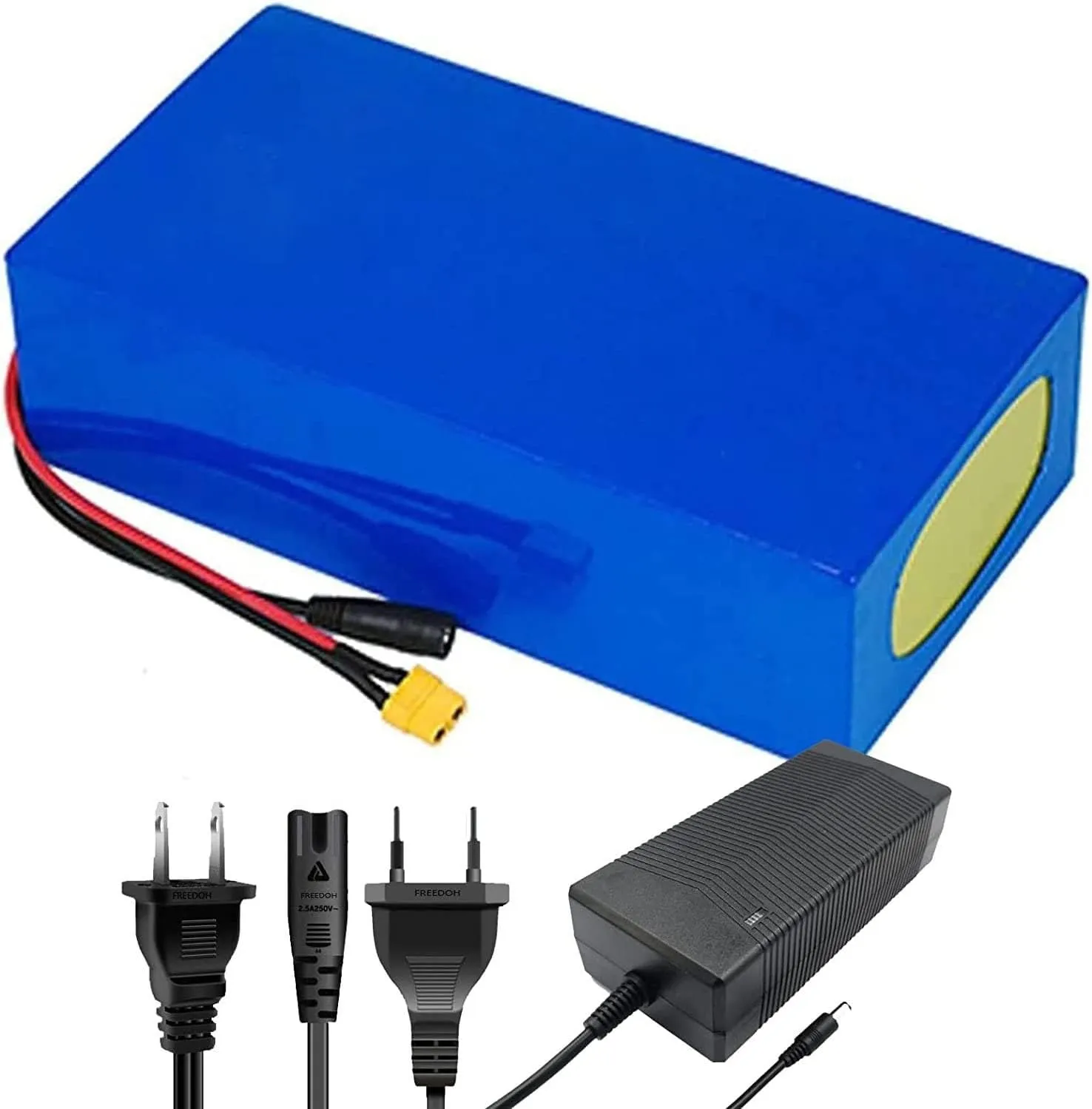

Delivery content:

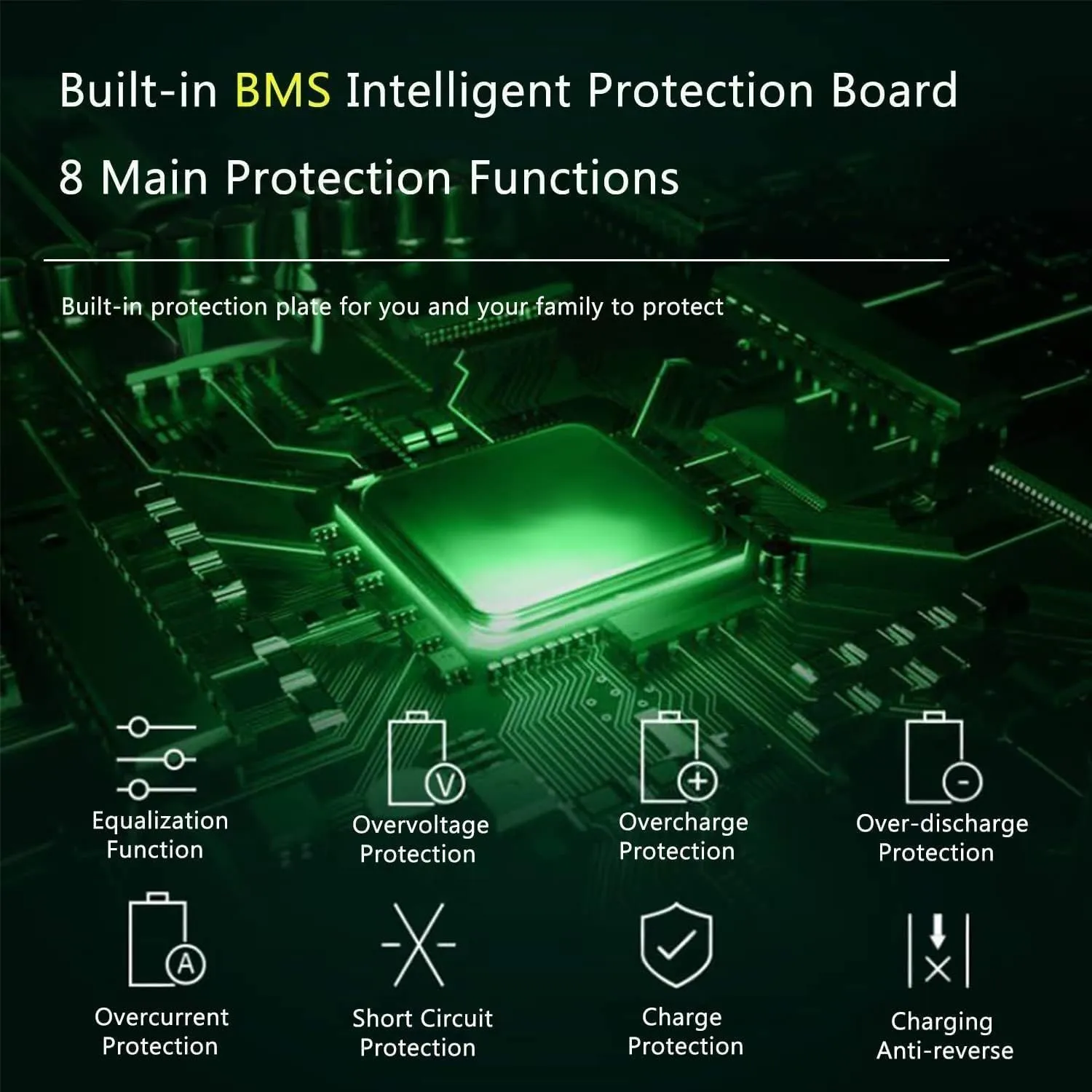

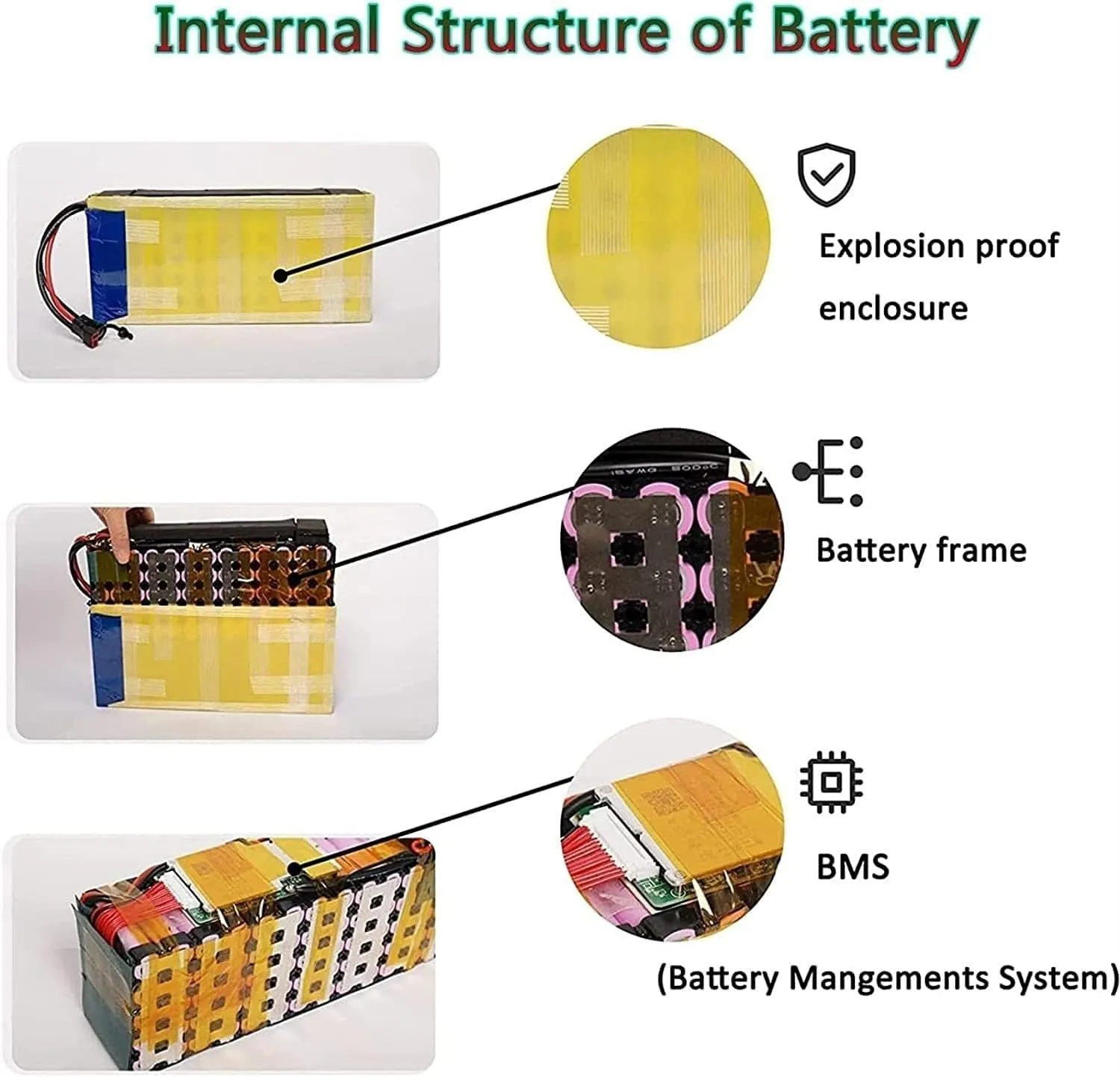

1.1 piece 36V battery with built-in BMS circuit board

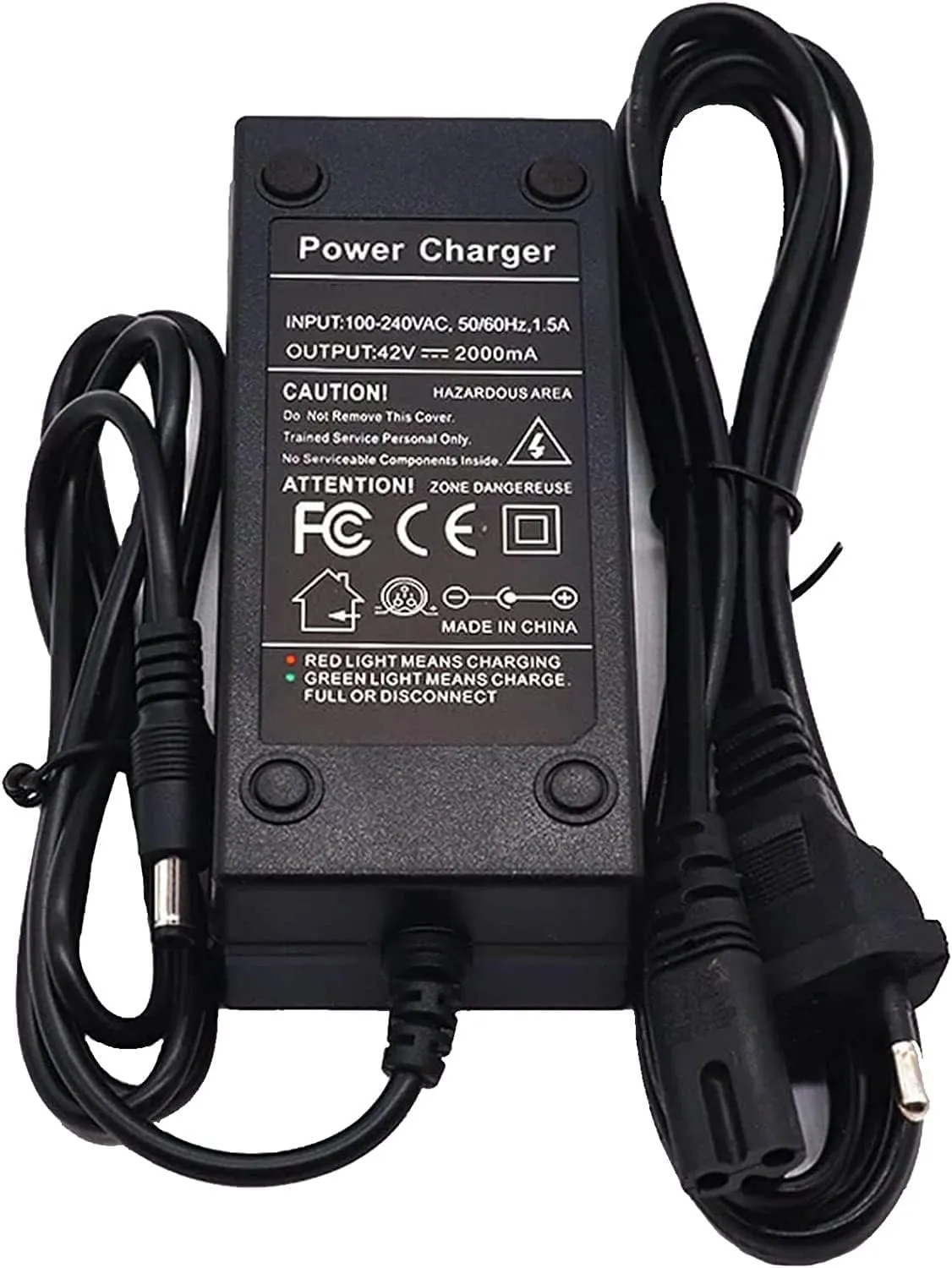

2.1* 2A charger
CUSTOMER SERVICE:

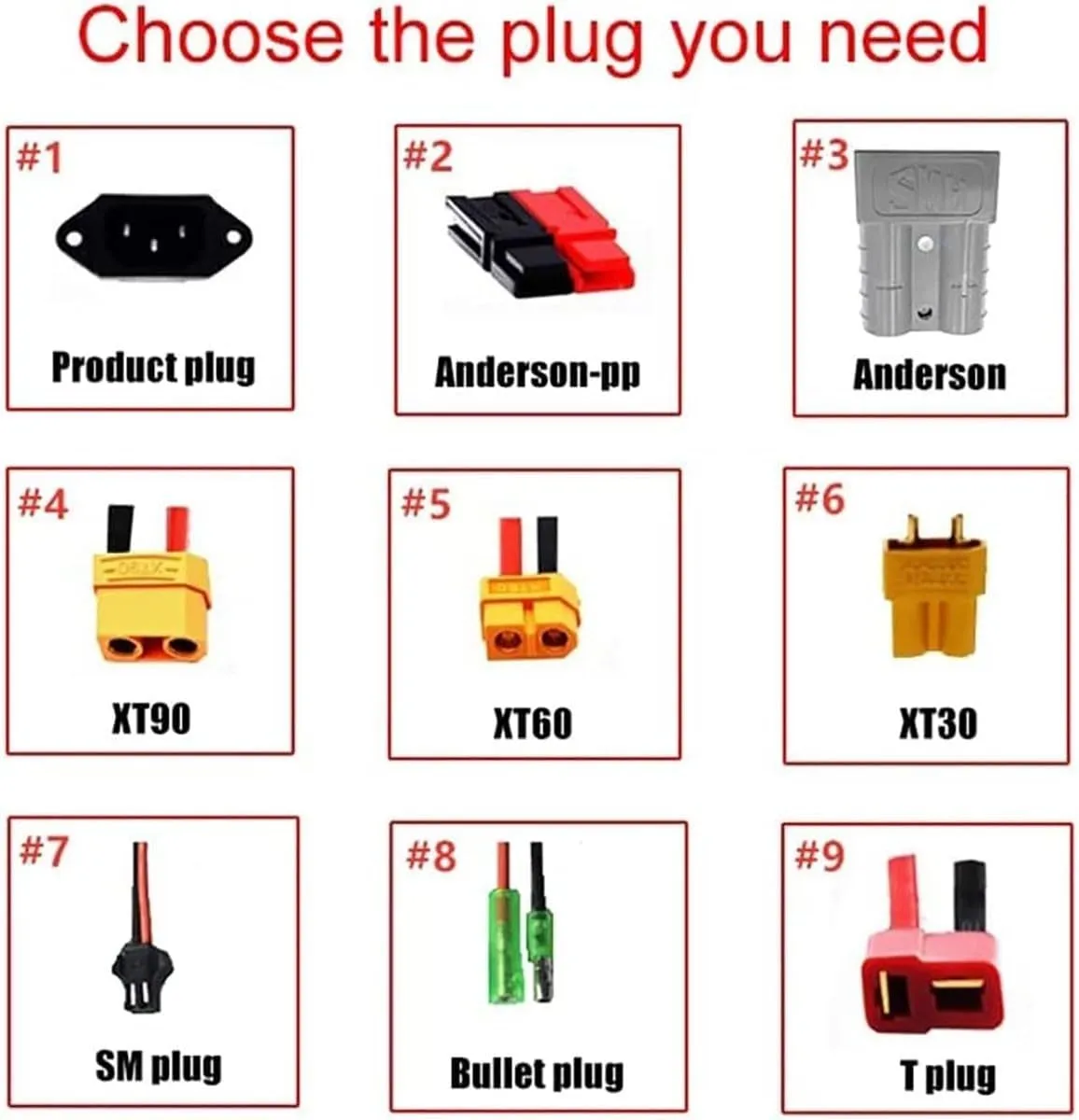

If you need different specification plugs and batteries, please contact us for customization
Please allow 1-3cm error range due to manual measurement.
The display and lighting are different, and the display color is different. Thank you for your understanding!
