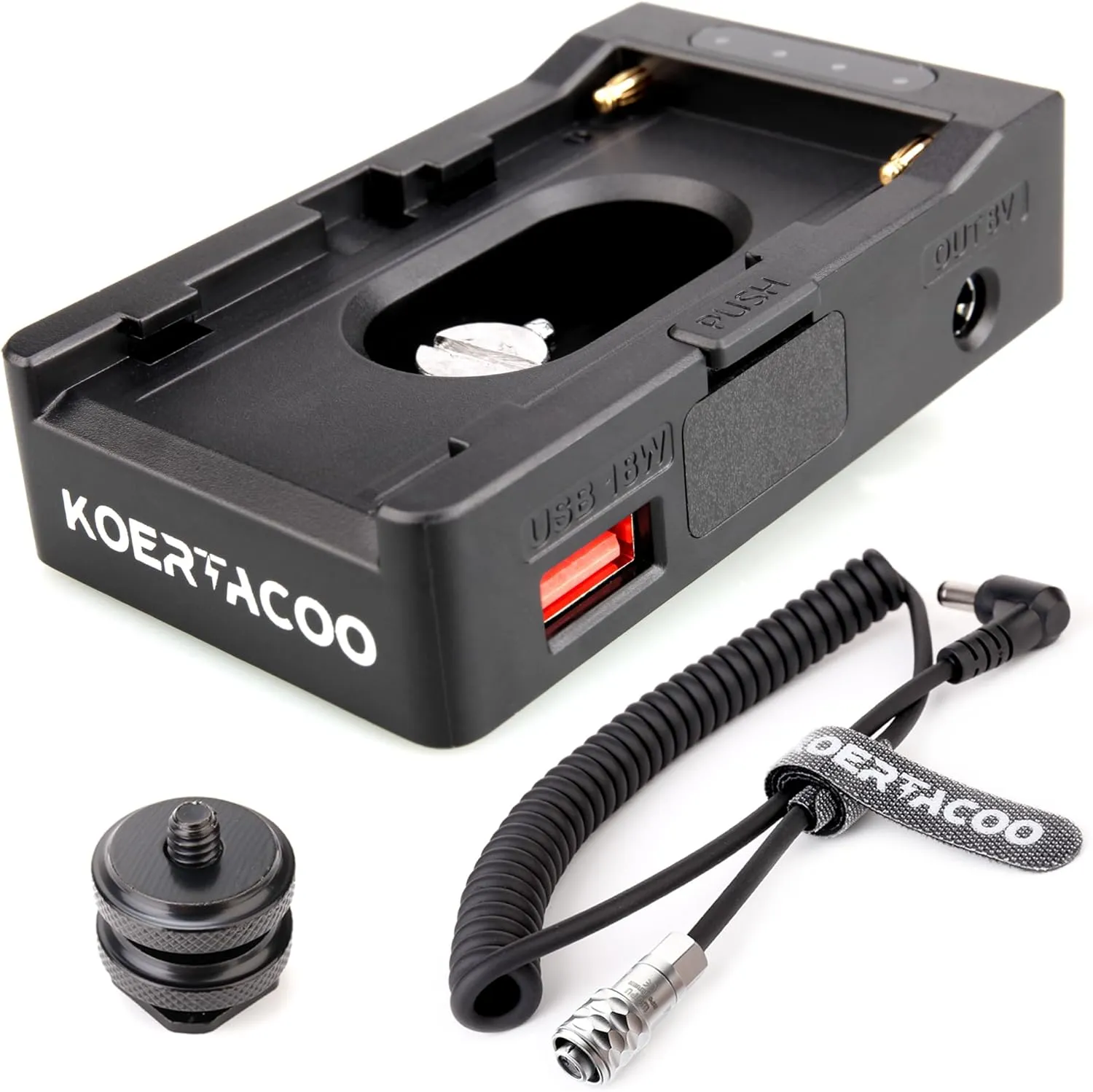

- ★ It is specially designed for Blackmagic Pocket cinema camera 4K 6K cameras, with one DC 12V/3A output and two DC 8V/3A outputs, one USB output port. BMPCC 4K/6K cameras can be powered using BMPCC 4K/6K DC locking cable.
- ★ Comes with shoe mount for mounting on cameras/rigs and other equipment. The battery plate has 4 indicators, A bright red LED indicates that power is on, 1 green light means 20% battery power, 2 green lights indicate 50% battery power, and 3 green lights indicate 100% battery power.
- ★ Compatible with Sony NP-F series batteries, including NP-F970, F960, F750, F770, F550, F570 batteries, with 8V/12V DC male-to-male coiled cable (included ) Use, can be used for video monitors, wireless video transmission, led lights, additional equipment, etc.
- ★ The metal 2-pin connector is a self-locking connector. It will automatically lock after being inserted into the BMPCC 4K/6K camera. When pulling out the dc cable, you need to pinch the top metal connector and pull it out instead of pinching the cable directly.
- ★ Package Include:1 x NP-F Battery Plate. 1 x BMPCC 4K DC Cable . 1 x DC Male to Male Coiled Cable.1 x 1/4" Hot Shoe Mount. 1x Storage bag.
This product is a system that uses Sony NP-F series battery as the power supply and converts multiple different voltages and power interfaces through this product. With a variety of voltage outputs, and a variety of interface outputs, with good heat dissipation performance, equipped with a variety of fixed methods. It is an efficient and practical multi-functional power supply system.
Notes:
1. Pay attention to voltage input and output parameters and interfaces to avoid damage to equipment and products.
2. In order to ensure the service life of the battery and components, the battery should be removed when not in use.
3. Do not store this product in a place with high temperature or humidity.
4. Do not use this product in an environment where the temperature is higher than 55°C or -20°C.
5. When this product works for a long time, please do not touch it to avoid burns.
Specification:
Battery input: NP-F550/F770/F970/F570
DC8V output (two): 8V 3A 5.5*2.1mm
DC12V output: 8V 3A 5.5*2.1mm
USB output: Maximum 18W, support QC2.0 and QC3.0
Plate material: shell ABS metal aluminum plate
4K cable size: DC12V/2A 5.5*2.5mm
DC coil wound wire size: 8V/12V 5.5*2.5mm-5.5*2.5mm
Package includes:
1 x NP-F battery plate
1 x BMPCC 4K/6K DC cable
1 x DC male-to-male coiled cable
1 x 1/4" shoe stand
1 x Storage Pocket
